The Remote Control

• The Remote Control Buttons and Their Functions
• Remote Control Reception Range
• Choosing IDs

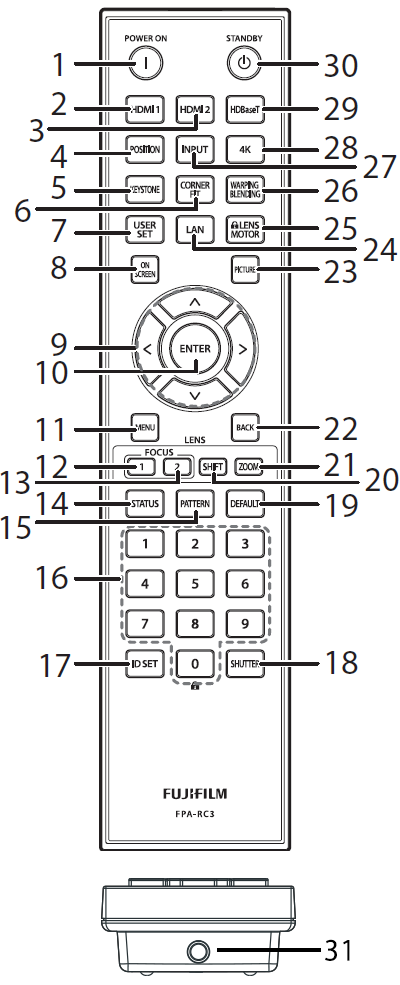

The Remote Control Buttons and Their Functions

The names and functions of the buttons on the remote control are listed below.

Item	Button	Function
1	POWER ON	Turn the projector on.
2	HDMI1	Select HDMI 1.
3	HDMI2	Select HDMI 2.
4	POSITION	Select projector position
5	KEYSTONE	Adjust the keystone.
6	CORNER FIT	4 corners adjustment.
7	USER SET	Enter user settings menu.
8	ON SCREEN	Hide the menus. Press again to view the menu once more.
9	efgh (Selector)	Navigate the menus.
10	ENTER	Select the highlighted menu item.
11	MENU	Display the menus used to adjust projector settings.
12	FOCUS1	Adjust overall focus.
13	FOCUS 2	Adjust focus at the edges of the picture.
14	STATUS	View projector information.
15	PATTERN	Display a test pattern. gh To choose the pattern.
16	10-key pad	Press and hold this button for four second to disable remote operation. Be sure a aim the remote at remote receiver when performing this operation. This setting can only be adjusted using the remote control.
17	ID	Display the IDs for the projector and remote control on the screen.
18	SHUTTER	Temporarily suspend projection and mute audio. Press again to resume.
19	DEFAULT	Restore default settings for the selected menu item. This setting can only be adjusted using the remote control.
20	SHIFT	Adjust Lens shift.
21	ZOOM	Adjust Lens zoom.
22	BACK	Return to the previous menu.
23	PICTURE	Select picture mode.
24	LAN	Enter LAN setting menu.
25	LENS MOTOR	Set the lens adjustment function On/Off. (Focus adjustment, shift adjustment, and zoom adjustment operations)
26	WARPING BLENDING	Enter warping and blending function.
27	INPUT	Select an input for the main image.
28	4K	Select 4K setting ON/OFF.
29	HDBaseT	Select HDBaseT.
30	STANDBY	Switch the projector to standby.
31	Remote Output	When using the remote control via a wired connection, connect it to the projector’s remote input terminal using a commercially available m3 stereo mini jack cable.

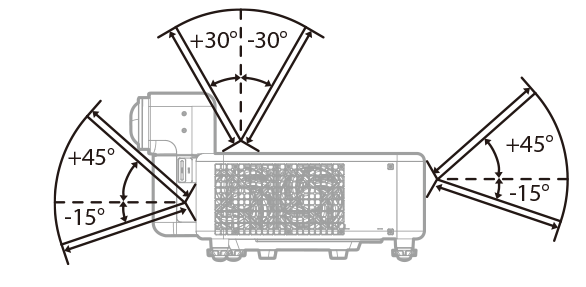

Remote Control Reception Range

The reception ranges for the projector’s three remote control receivers are as follows:

• Angle: ±30°, -15°～45°
• Distance: Up to 12m (39 ft)

Choosing IDs

IDs let you operate multiple projectors, either separately or together, using a single remote control.

This example sets the ID to “02”.

1. Set the projector ID.

   Display the IDs by pressing the ID SET button on the remote control.

   1. Select Projector ID Setting in the SYSTEM SETUP: Basic menu.

   2. Select On for Projector ID Setting in the ID selection display. Next, select “02” and press ENTER.

2. Set the remote control ID.

   The remote control ID defaults to 00.

   1. A: Press and hold ID SET on the remote control for three seconds.

      yThe remote control operation lamp will start to flash for 3 seconds and then continue to turn on.



   2. B Press "0" within 3 seconds and press "2" within 3 seconds using the 10-key pad.

   3. CPress ENTER within 3 seconds.

      Y The remote control operation lamp will turn off.
