Connections

dCAUTIONS

• Operation is not guaranteed in all connection environments.

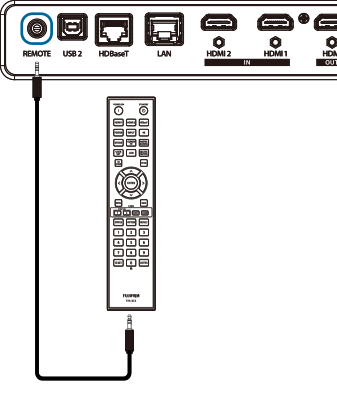

• When the remote output terminal is used, the remote control does not emit infrared rays.
• The projector’s built-in remote control sensor remains enabled by default.
  To disable it, go to aSystem Settings: Basic / Set Remote Control Sensor to Off.

bMEMO

• In System Settings: Advanced, set the operation channel to HDBaseT under LAN Settings to enable LAN communication via the HDBaseT terminal.

dCAUTIONS

• Please use a shielded STP Cat cable of category 5e or higher.
• The maximum transmission distance over a Cat cable is approximately 100 meters.
• The HDBaseT terminal on this unit supports transmitters compatible with serial communication and infrared signals.
  To enable infrared over HDBaseT, go to aSystem Settings: Basic / Set Remote Control Sensor to HDBaseT.
• This unit does not guarantee operation with all commercially available HDBaseT-compatible transmitters or under all connection environments.

dCAUTIONS

• If the operation channel is set to HDBaseT in System Settings: Advanced / LAN Settings, the LAN terminal will be disabled.

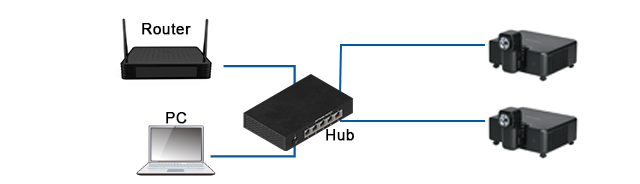

• This product cannot be directly connected to communication lines provided by telecommunications carriers (such as mobile network operators, fixed-line companies, or internet service providers). To connect this product to the internet, always do so via a router or similar device.

bMEMO

• The HDMI OUT terminal can be switched between HDMI1 and HDMI2 in the aInput Menu > Output Settings.

dCAUTIONS

• When inputting or outputting 18 Gbps signals, such as 3840×2160 60p 4:2:2 video, please use a compatible HDMI cable.

bMEMO

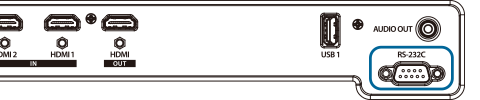

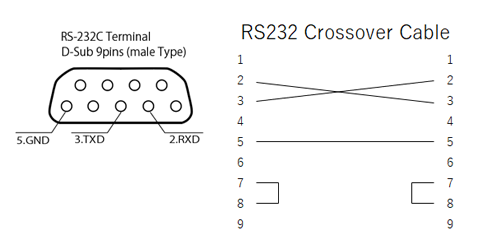

• When connecting to a PC or similar device, please use a commercially available cross cable.
