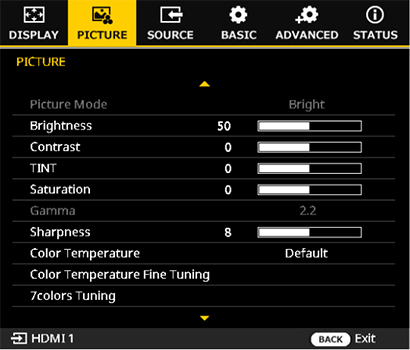

• PICTURE

Enter a search term and click .


Picture Mode

Choose a picture mode.

Options	Description
Bright	For use in bright locations.
Standard[PROVIA]	Optimized balance between brightness and color reproduction.
Vivid[Velvia]	Mode for emphasizing color.
Cinema[ETERNA]	For videos projected in a dark room.
Multi Projection[sRGB]	Colors are displayed using the sRGB color space.
High Speed	Display the status of high speed mode.
HDR	For displaying High Dynamic Range (HDR) content.

Brightness

Adjust the brightness of the projected image.

Options
0～50～100

Contrast

Adjust contrast.

Options
-50～0～50

TINT

Adjust colors in the projected image. "The higher the value, the greener the image, the lower the value, the redder the image."

Options
-50～0～50

Saturation

Adjust saturation. The “+” side makes the color darker, while the “–” side makes the color lighter.

Options
-50～0～50

Gamma

Choose a gamma value for the projected image.

Options
1.6～2.2～3.3

Sharpness

Adjust the sharpness of outlines.

Options
1～8～15

Color Temperature

Choose the color temperature of the projected image.

Options
3200K	4200K	5200K	6200K	6500K	DEFAULT	8200K	9300K

Color Temperature Fine Tuning

Fine-tune color temperature.

After pressing ENTER to display advanced color temperature options, press the selector up or down to highlight options and left or right to adjust.

Item	Description
R Gain	Adjust the contrast of reds. Choose from values between 0 and 200. "The lower the value, the lower the contrast; the higher the value, the higher the contrast."
G Gain	Adjust the contrast of greens. Choose from values between 0 and 200. "The lower the value, the lower the contrast; the higher the value, the higher the contrast."
B Gain	Adjust the contrast of blues. Choose from values between 0 and 200. "The lower the value, the lower the contrast; the higher the value, the higher the contrast."
R Offset	Adjust the brightness of reds. Choose from values between -50 and 50. Lower values reduce brightness, while higher values increase it.
G Offset	Adjust the brightness of greens. Choose from values between -50 and 50. Lower values reduce brightness, while higher values increase it.
B Offset	Adjust the brightness of blues. Choose from values between -50 and 50. Lower values reduce brightness, while higher values increase it.

7colors Tuning

Adjust hue, gain, and saturation for each of seven color channels (R, G, B, C, M, Y, and W).

After pressing ENTER to display options, press the selector left and right to highlight the desired color channel and adjust each parameter as desired, starting with Color.

"Red, Green, Blue, Cyan, Magenta, or Yellow Selected for Color"

Item	Range
Hue	0 ～ 254
Gain	0 ～ 254
Saturation	0 ～ 254

White Selected for Color

Item	Options
R Gain	0 ～ 254
G Gain	0 ～ 254
B Gain	0 ～ 254

White Peaking

Adjust the brightness of whites.

Options
0～ 100

Dynamic Contrast

Configure the dynamic contrast to maximize the contrast of dark content.

Press ENTER to display options and then select the desired item.

DynamicBlack™

When this function is enabled, the contrast ratio of the input image is automatically adjusted. By optimizing the light source output, the black level in dark scenes is improved.

Options	Range
On	Enable DynamicBlack™, then adjust the speed and level.
Off	Disable DynamicBlack™.

• Adjust the speed of the light source correction. The value ranges from 1 to 255. Lower value makes the correction slower and less aggressive while a higher value results in the faster correction.
• Level
  Adjust the light source when the brightness level of the current content gets lower than the set value. The value ranges from 50% to 100%. "The higher the value, the larger the range to adjust the light source."

Extreme Black

When this function is enabled, the light source output is reduced to the specified level when a black image is detected.

Options	Range
On	Enable Extreme Black, then set the light out timer, light out signal level, and lights on threshold.
Off	Disable Extreme Black.

• Light Out Timer
  Set a timer for the light source to turn off after detecting black content. The option is from 0 sec to 20 sec.
• Light Out Signal Level
  Set the signal level for lights out for the RealBlack function. The value ranges from 1 to 255.
• Light On Threshold
  Set the threshold for turning on the lights on. The value ranges from 0 to 127.

Reset

Reset Dynamic Contrast settings to the default values.

Options
Cancel	Reset
