.Geometric Distortion Correction Area
Numerical values are subject to an error of several percent due to approximate calculation. As the correction amount increases, it may become difficult to achieve focus.
The correction range is based on a Lens Shift position of V (vertical)± 0% and H (horizontal)± 0%.
| Optional lens model number | Keystone Correction | Curved screen correction | ||||
|---|---|---|---|---|---|---|
| A Horizontal Keystone | B Vertical Keystone | C Horizontal Concave | D Vertical Concave | E Horizontal Convex | F Vertical Convex | |
| A Correction Angle | B Correction Angle | R/L Minimum Value | R/L Minimum Value | R/L Minimum Value | R/L Minimum Value | |
| FP-ZL034 | ±5° | ±5° | 1.50 | 1.41 | 4.73 | 2.14 |
| FP-ZL050 | ±20° | ±10° | 1.24 | 0.80 | 4.33 | 1.67 |
FP-ZL125 |
±40° | ±20° | 0.35 | 0.20 | 0.59 | 0.32 |

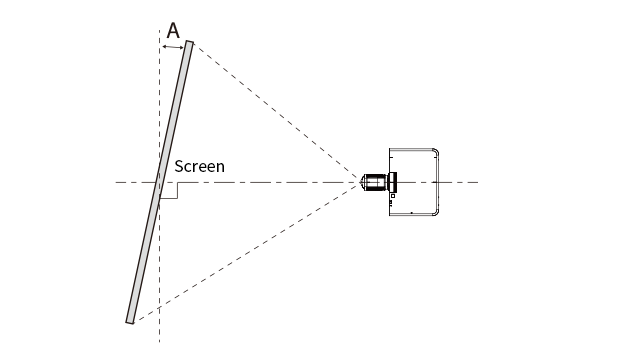

A Horizontal keystone correction [Top view] |

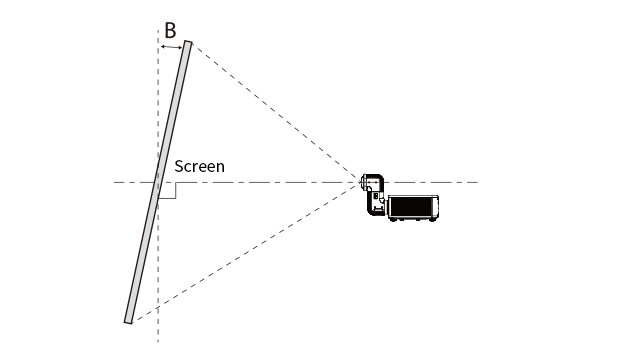

B Vertical keystone correction [Side view] |

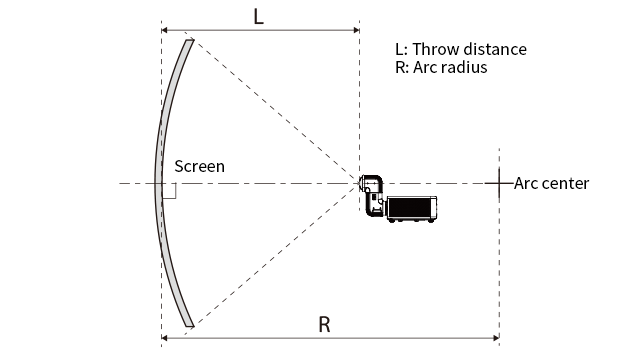

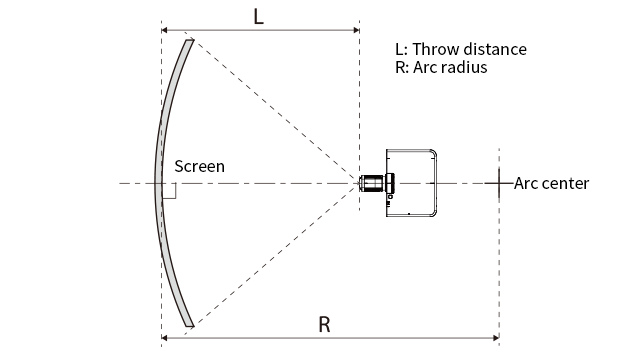

C Horizontal concave correction [Top view] |
D Vertical concave correction [Side view] |

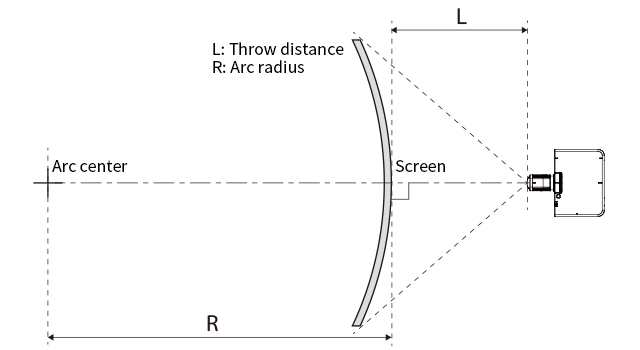

E Horizontal convex correction [Top view] |

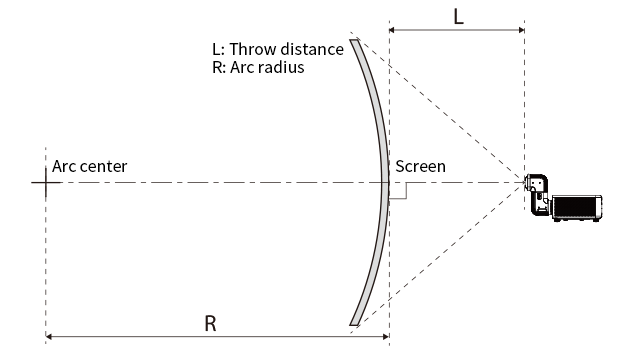

F Vertical convex [Side view] |
